TRACKSBOARD_WAVEFORM_SETTINGS structure |

|
|
TRACKSBOARD_WAVEFORM_SETTINGS structure |
|
The TRACKSBOARD_WAVEFORM_SETTINGS structure describes settings applied while rendering waveforms of items added to the TracksBoard. The current settings can be retrieved through the TracksBoard.SettingsWaveGet method and modified through the TracksBoard.SettingsWaveSet method.
For details about the use of the TracksBoard refer to the How to use the TracksBoard to visually compose songs tutorial.
For further details about methods of the TracksBoard refer to the TracksBoard object section.
Visual C++ definition
typedef struct
{
OLE_COLOR colorWaveBackground;
OLE_COLOR colorWaveLinePeak;
OLE_COLOR colorWaveLineCenter;
OLE_COLOR colorWaveMuted;
OLE_COLOR colorVolumeLine;
OLE_COLOR colorTimeLine;
OLE_COLOR colorLockedTrackForeground;
OLE_COLOR colorLockedTrackBackground;
short nLockedColorTranspFactor;
short nWaveLineIntensityFactor;
short bUseHalfColorsForPeaks;
short bDrawLinesOverWave;
long nViewMode;
} TRACKSBOARD_WAVEFORM_SETTINGS;
This data structure is defined inside the AdjMmsEngDef.h header file which can be found inside the product's Include directory (default \Program files\MultiMedia Soft\Active Sound Editor\include).
Visual Basic definition
Public Type TRACKSBOARD_WAVEFORM_SETTINGS
colorWaveBackground as OLE_COLOR
colorWaveLinePeak as OLE_COLOR
colorWaveLineCenter as OLE_COLOR
colorWaveMuted as OLE_COLOR
colorVolumeLine as OLE_COLOR
colorTimeLine as OLE_COLOR
colorLockedTrackForeground as OLE_COLOR
colorLockedTrackBackground as OLE_COLOR
nLockedColorTranspFactor as Integer
nWaveLineIntensityFactor as Integer
bUseHalfColorsForPeaks as Boolean
bDrawLinesOverWave as Boolean
nViewMode as enumTracksBoardViewModes
End Type
This data structure is defined inside the AdjMmsEngDef.bas module file which can be found inside the product's Include directory (default \Program files\MultiMedia Soft\Active Sound Editor\include).
Member |
Description |
|||||||||
|
|
|||||||||

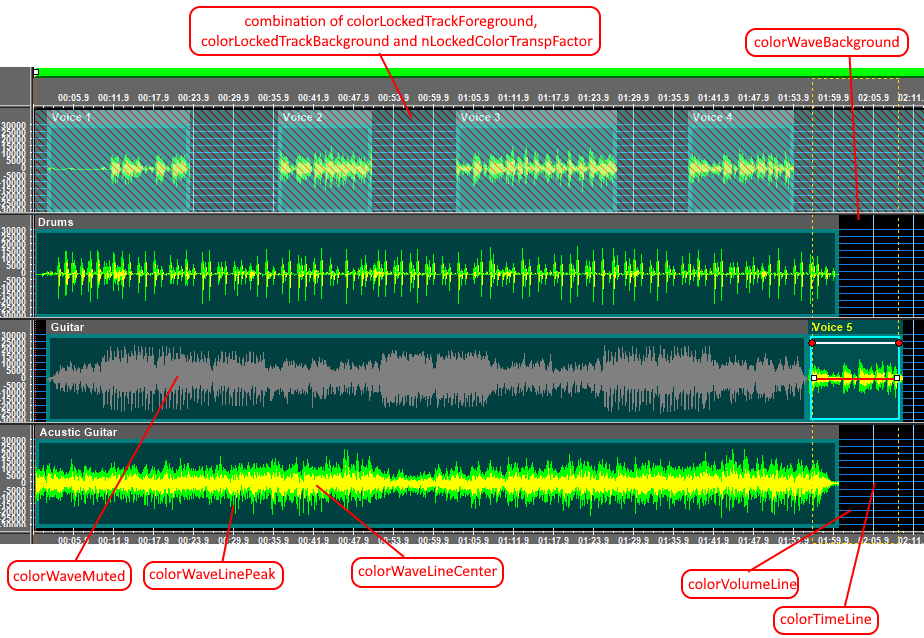

Color used for rendering the waveform background. |
||||||||||
Color used for rendering peaks of the waveform line. This default setting can be modified on a "per item" basis through the TracksBoard.ItemWaveColorsSet method |
||||||||||
Color used for rendering the center of the waveform line. This default setting can be modified on a "per item" basis through the TracksBoard.ItemWaveColorsSet method |
||||||||||
Color used for rendering the waveform when in muted state |
||||||||||
Color used for rendering volume lines. Volume lines can be hidden by setting this value to -1. |
||||||||||
Color used for rendering time lines. Time lines can be hidden by setting this value to -1. |
||||||||||
Foreground color used for rendering the hatched brush on a locked track |
||||||||||
Background color used for rendering the hatched brush on a locked track |
||||||||||
Transparency applied to colors of the hatched brush (colorLockedTrackForeground and colorLockedTrackBackground) on a locked track. This value can range from 0 (total opacity) to 255 (total transparency). Values outside of this range will be automatically capped to the nearest valid value. |
||||||||||
Factor of gradient intensity of the waveform line. This value can range from 0 to 100 with a default value of 50. Values outside of this range will be automatically capped to the nearest valid value. On the screenshot below you can appreciate the difference between the default value 50 (on the left) and a value of 20 (on the right):
|
||||||||||
Boolean value that specifies if waveform peaks will have a half intensity color. This field is ignored when colors set into the colorWaveLinePeak and colorWaveLineCenter fields are different. Supported values are the following:
|
||||||||||
Boolean value that specifies if time and amplitude lines must be drawn over the waveform. Supported values are the following:
|
||||||||||

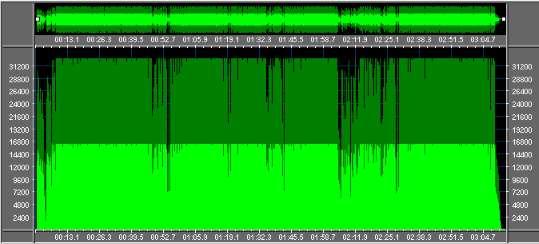

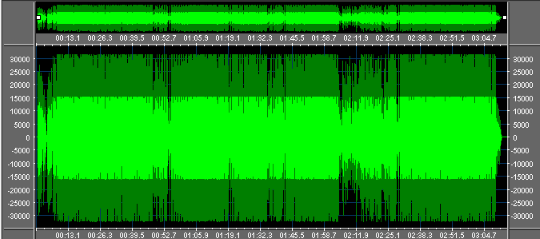

The current visualization mode for waveforms on the TracksBoard, Supported values are the following:
|
