Copyright © 2008-2023 MultiMedia Soft TRACKSBOARD_SCROLLBARS_SETTINGS structure

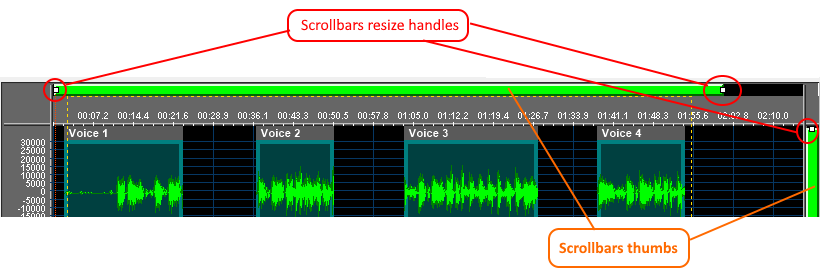

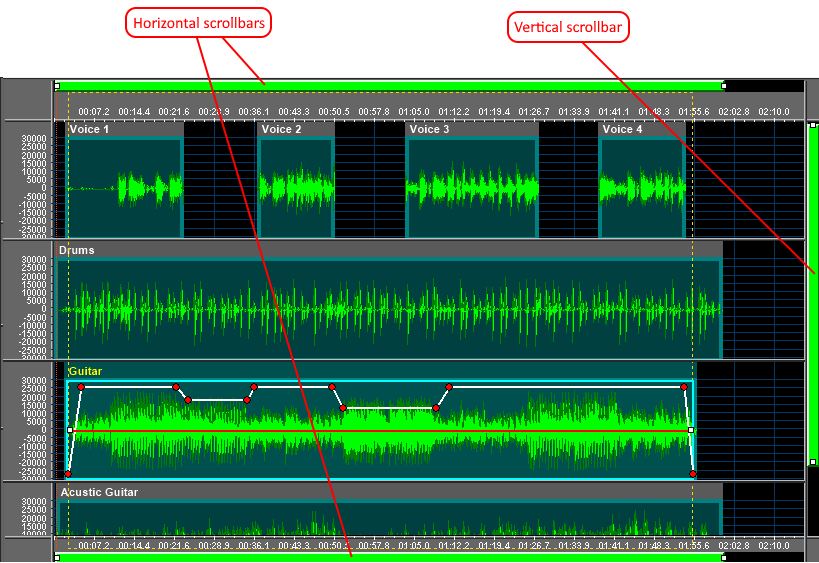

The TRACKSBOARD_SCROLLBARS_SETTINGS structure describes settings applied while rendering the scrollbars on the TracksBoard. The current settings can be retrieved through the TracksBoard.SettingsScrollbarsGet method and modified through the TracksBoard.SettingsScrollbarsSet method.



For details about the use of the TracksBoard refer to the How to use the TracksBoard to visually compose songs tutorial.

For further details about methods of the TracksBoard refer to the TracksBoard object section.



Visual C++ definition



typedef struct

{

     short nHeightInPixels;

     short bVisibleTop;

     short bVisibleBottom;

     short bVisibleRight;

     OLE_COLOR colorBackground;

     OLE_COLOR colorThumb;

} TRACKSBOARD_SCROLLBARS_SETTINGS;



This data structure is defined inside the AdjMmsEngDef.h header file which can be found inside the product's Include directory (default \Program files\MultiMedia Soft\Active Sound Editor\include).



Visual Basic definition



Public Type TRACKSBOARD_SCROLLBARS_SETTINGS

    nHeightInPixels as Integer

    bVisibleTop as Boolean

    bVisibleBottom as Boolean

    bVisibleRight as Boolean

    colorBackground as OLE_COLOR

    colorThumb as OLE_COLOR

End Type



This data structure is defined inside the AdjMmsEngDef.bas module file which can be found inside the product's Include directory (default \Program files\MultiMedia Soft\Active Sound Editor\include).
