Copyright © 2011-2023 MultiMedia Soft WANALYZER_VERTICAL_LINE structure

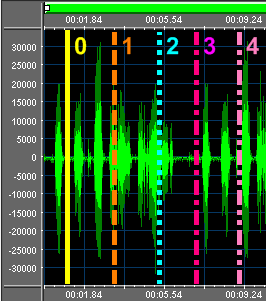

The WANALYZER_VERTICAL_LINE structure (defined as WANALYZER_VERTICAL_LINE_DLL when used for COM interoperability) describes settings applied to a vertical line added to the Waveform Analyzer through the WaveformAnalyzer.GraphicItemVerticalLineAdd method. The current settings can be retrieved through the WaveformAnalyzer.GraphicItemVerticalLineParamsGet method and modified through the WaveformAnalyzer.GraphicItemVerticalLineParamsSet method.



For details about the use of the Waveform Analyzer refer to the How to use the Waveform Analyzer section.

For further details about methods of the Waveform Analyzer refer to the WaveformAnalyzer class section.



This structure can be also used with vertical lines added to the TracksBoard through the TracksBoard.VerticalLineAdd method. Current settings can be retrieved through the TracksBoard.VerticalLineParamsGet method and modified through the TracksBoard.VerticalLineParamsSet method.



For details about the use of the TracksBoard refer to the How to use the TracksBoard to visually compose songs tutorial.

For further details about methods of the TracksBoard refer to the TracksBoard object section.





C# definition



public struct WANALYZER_VERTICAL_LINE

{

     public Color                     color;

     public enumWaveformLineDashStyles nDashStyle;

     public Int16                     nWidth;

     public Int16                     nTranspFactor;

     public enumLineCaps               nHighCap;

     public enumLineCaps               nLowCap;

     public enumLineDashCaps           nDashCap;

}



Definition for COM Interoperability



public struct WANALYZER_VERTICAL_LINE_DLL

{

     public Int32                     color;

     public Int32                     nDashStyle;

     public Int16                     nWidth;

     public Int16                     nTranspFactor;

     public Int32                     nHighCap;

     public Int32                     nLowCap;

     public Int32                     nDashCap;

}
