Copyright © 2011-2019 MultiMedia Soft CURVE_DESIGNER_SETTINGS structure

The CURVE_DESIGNER_SETTINGS structure (defined as CURVE_DESIGNER_SETTINGS_DLL when used for COM interoperability) describes the graphical settings applied to a specific curve designer. The current settings can be obtained through the Effects.CurveDesigner.GetGraphicalSettings method and modified through the Effects.CurveDesigner.SetGraphicalSettings method.



For details about using the Curve Designer refer to the How to create custom volume curves tutorial.

For further details about defining a volume automation procedure refer to the How to define a volume automation procedure section.



C# definition



public struct CURVE_DESIGNER_SETTINGS

{

 public bool   bAppearance3d;

 public bool   bFadeIn;

 public Color colorCurveLine;

 public Color colorBackground;

 public Color colorHandles;

 public Color colorHandlesBorder;

 public Color colorHandleLines;

 public Color colorBorder;

 public Int16 nCurveLineWidth;

 public bool   bHandleLinesVisible;

}

Definition for COM interoperability



public struct CURVE_DESIGNER_SETTINGS_DLL

{

 public Int16 bAppearance3d;

 public Int16 bFadeIn;

 public Int32 colorCurveLine;

 public Int32 colorBackground;

 public Int32 colorHandles;

 public Int32 colorHandlesBorder;

 public Int32 colorHandleLines;

 public Int32 colorBorder;

 public Int16 nCurveLineWidth;

 public Int16 bHandleLinesVisible;

}

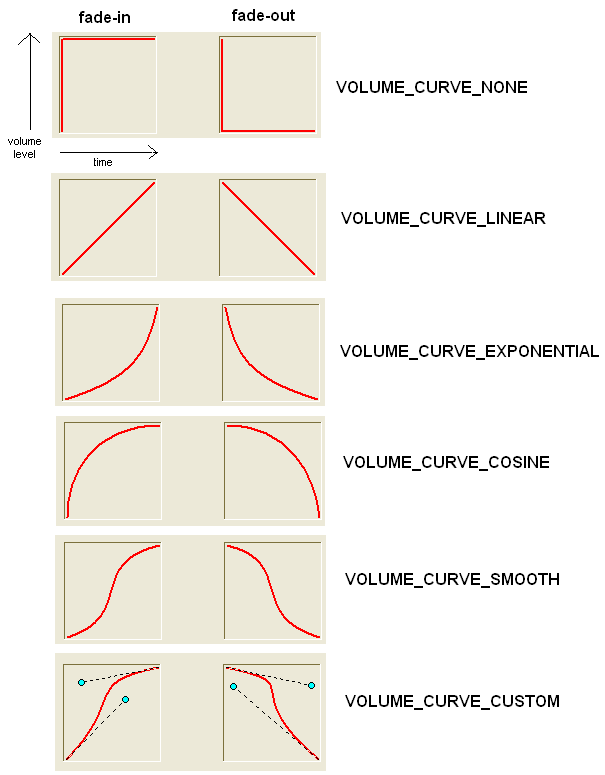

Below you can see a zoomed curve designer with various configurable elements:
