Tutorials > How to apply a texture to the button surface

The simplest way to change a button's appearance is to use, inside 3D Button Visual Editor, the Textures tab. At run-time each of these properties can be referenced by name.

Supported texture formats are:

•

BMP

•

JPG

•

PNG

Below you can see a sample of a button with a blue marble texture applied.

3dabm_i000072

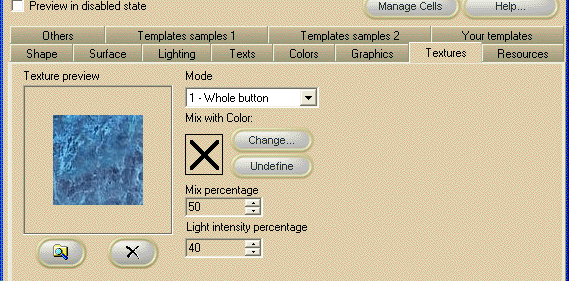

Note: The image below has hot links to take you to explanations of the various settings.

3dabm_i00006e

Texture management is handled by the TextureSurface property through an internally implemented COM object called Texture.

Item name	Description	Corresponding property
Texture preview	Preview of the loaded texture picture	Texture.Filepath
Mode	The mode used to display a texture over the button surface.	Texture.Mode
Mix with Color	The color that will be mixed to the texture.	Texture.ColorToMix
"Change..." button	This button will open the color choice dialog box
"Undefine" button	This button will set the color mixed to the texture to an undefined state: when a color is set to undefined no color mixing is performed. The undefined state is represented with the symbol in place of the color.
Mix percentage	The mixing percentage between the texture and the chosen color.	Texture.PercentageColorMix
Light intensity percentage	The intensity of the light hitting the texture	Texture.LightIntensity
Browse button	Browses the current PC folders for a texture picture.
Delete button	Deletes the current texture picture

At Run-time the texture picture can be changed using the following methods:

SetPictureFromHandle method to change the texture picture using a bitmap loaded in memory, identified by a bitmap handle.

SetPictureFromMemory method to change the texture picture using a bitmap loaded in memory.

SetPictureFromNet method to change the texture picture using a bitmap loaded from the Internet.
