Classes > TracksBoard class > Methods > TracksBoard.ControlIconAddFromFile method

Remarks

Adds a new two states control icon to the Tracksboard by taking its bitmaps from two files: once added, each control icon is immediately positioned on the left amplitude vertical ruler for each of the available tracks; for this reason the bVisibleLeft field of the TRACKSBOARD_RULERS_SETTINGS data structure must be set to "true".

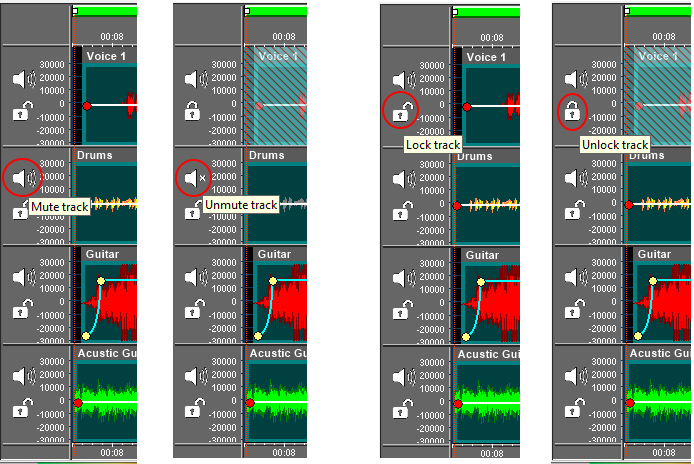

Each control icon can have two bitmaps representing two different situations; on the screenshot below, taken from the TracksBoard sample project available with the installer, two control icons are added, one providing the possibility to mute / unmute the track and the other one providing the possibility to lock / unlock the track; by default each track is in "unmute" status and in "unlock" status (status 1); when in status 1 the tooltip text represents what will happen after clicking the control icon with the mouse: once clicked, the bitmap will show the "mute" status (status 2) and the tooltip text will show that, by clicking the control again, the track will be brought back to the "unmute" status (status 1).

This is obviously a simple usage of control icons, you may decide to use these control icons for any purpose you may have.

When one of the control icons is clicked, the CallbackTracksboardControl delegate is invoked.

The vertical and horizontal alignment of control icons can be modified through the TracksBoard.ControlIconsAlignmentSet method.

For details about the use of the TracksBoard refer to the How to use the TracksBoard to visually compose songs tutorial.

For further details about methods of the TracksBoard refer to the TracksBoard object section.

Syntax

[Visual Basic]

Public Function ControlIconAddFromFile (

ByRef nUniqueId as Int32,

strPathnameStatus1 as String,

strTextStatus1 as String,

strPathnameStatus2 as String,

strTextStatus2 as String,

nReserved as Int16

) as enumErrorCodes

[C#]

public enumErrorCodes ControlIconAddFromFile (

ref Int32 nUniqueId,

string strPathnameStatus1,

string strTextStatus1,

string strPathnameStatus2,

string strTextStatus2,

Int16 nReserved

);

[C++]

public: enumErrorCodes ControlIconAddFromFile (

Int32 __gc *nUniqueId,

string strPathnameStatus1,

string strTextStatus1,

string strPathnameStatus2,

string strTextStatus2,

Int16 nReserved

);

Parameter	Description

nUniqueId	Reference to a value that, on return from the method call, will contain the unique identifier of the newly added control icon: this unique identifier will be passed to the CallbackTracksboardControl delegate when the control icon is clicked.
strPathnameStatus1	Absolute pathname of the picture file for status 1. Supported graphic formats are BMP, ICO, GIF, JPG, TIF and PNG.
strTextStatus1	String to display on the tooltip when the mouse is hovering the control icon in its status 1.
strPathnameStatus2	Absolute pathname of the picture file for status 1. Supported graphic formats are BMP, ICO, GIF, JPG, TIF and PNG.
strTextStatus2	String to display on the tooltip when the mouse is hovering the control icon in its status 2.
nReserved	Reserved for future uses.

Return value

Value	Meaning

Negative value	An error occurred (see the LastError property for further error details)
enumErrorCodes.ERR_NOERROR (0)	The method call was successful.
