SurfaceTransparentFactor property

Previous pageReturn to chapter overviewNext page

Type

short for Visual C++

integer for Visual Basic





Syntax

object.SurfaceTransparentFactor [=integer]





Remarks

Applies alpha channel transparency to the button surface.

This property value can range from a default value of 0 (total opacity) to a value of 255 (total transparency). A value entered out of this range produces a value of  0.

Note that setting this property value to 1 will produce an opaque button perfectly anti-aliased with the underlying background: this is very useful if you have an underlying picture.

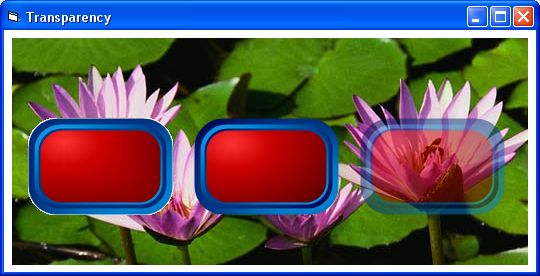

Below you can see a screenshot of a form (white background) with a picture control containing a set of three identical buttons: the left one has the property set to 0 (total opacity, anti-alias with the form background color), the center one has the property set to 1 (total opacity, anti-alias with the underlying picture) and the right one has the property set to 128 (semi-transparent).

3dabm_i0000c7

Note that, in case the underlying picture should change, you could force a refresh of the control using the RefreshTransparentControl method.





See also

How to manage alpha channel transparency section.

How to render buttons over a picture section.
