Active MIDI DJ Console is an ActiveX custom control (OCX control) developed by MultiMedia Soft that makes it easy to add support for managing MIDI input and output devices and commercial MIDI DJ consoles/controllers to multimedia applications written with the most widely-used development environments that accept ActiveX controls.
MIDI is nothing more than data containing a list of events or messages that tell an electronic device (musical instrument, computer sound card, etc.) how to generate a certain sound or how to react to a certain operation request: Active MIDI DJ Console allows opening communication between connected external electronic devices and the PC running the container application.

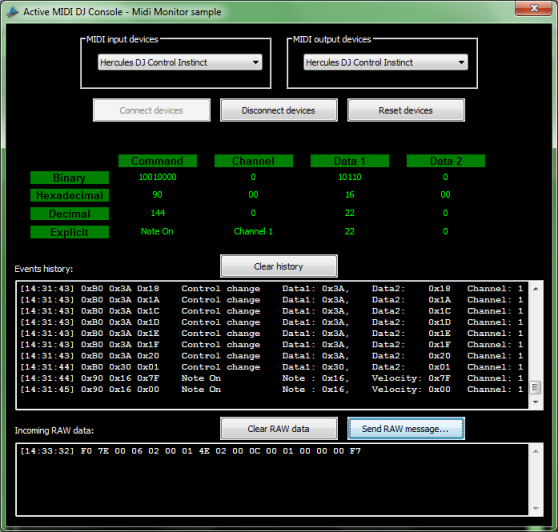

Once communication is opened, Active MIDI DJ Console allows receiving MIDI data from the input channel connected to the external MIDI device and notifying MIDI data reception to the container application; as you may understand the communication between the external MIDI device and the ActiveX control is obviously bidirectional so the control allows sending MIDI data, through short MIDI messages or through raw MIDI messages (also known as SysEx messages), to the output channel connected to the external MIDI device.
If there should be the need to send any MIDI message incoming from an external MIDI device in output to another external MIDI device, Active MIDI DJ Console could be used as a sort of bridge or repeater, allowing direct communication between the two external MIDI devices.

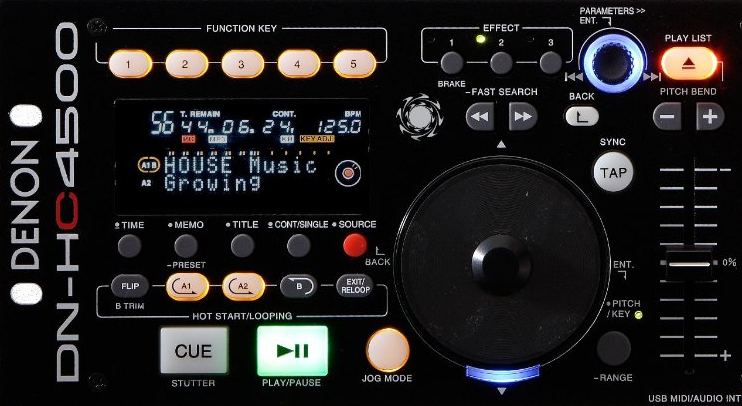

Thanks to the mentioned bidirectional communication, Active MIDI DJ Console can easily manage input/output of MIDI data with commercial DJ Consoles available on the market. As you may know, each MIDI DJ Console comes with its own set of MIDI commands for notifying that a button control has been pushed or that a slider control has been moved or that a rotary knob control has been rotated on the physical console; at the same time, each MIDI DJ Console comes with its own set of MIDI commands for switching a led on or off or for displaying a string of characters on one or more display segments (VFD) available on the physical console.

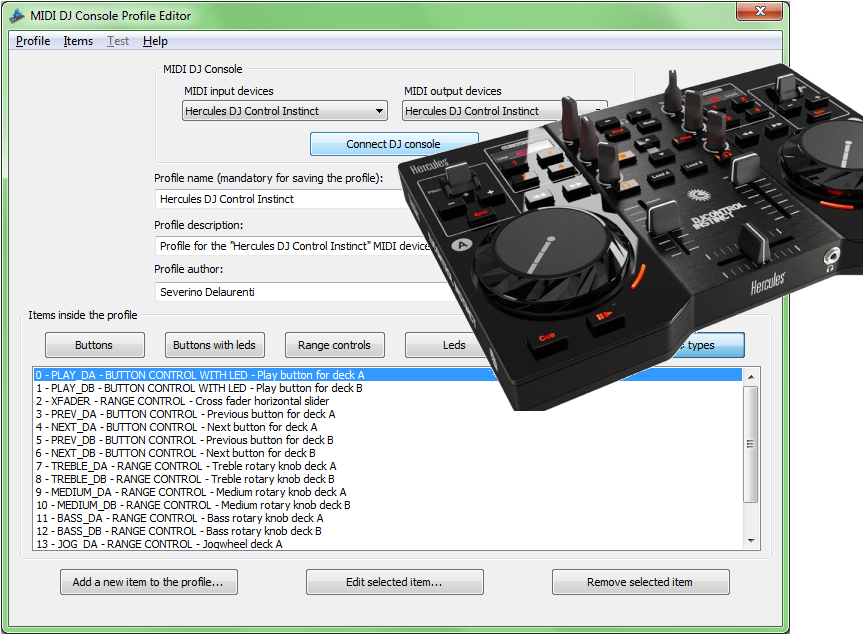

Due to the fact that each DJ console, also when coming from the same vendor/manufacturer, may use a different set of MIDI commands, Active MIDI DJ Console comes with a set of methods allowing to create, edit and modify profiles (also known as maps) for each of the connected DJ consoles: in this way the container application could virtually connect to any model of DJ console supporting the MIDI protocol by allowing the final user to create his own profiles or by loading profiles created by other users.

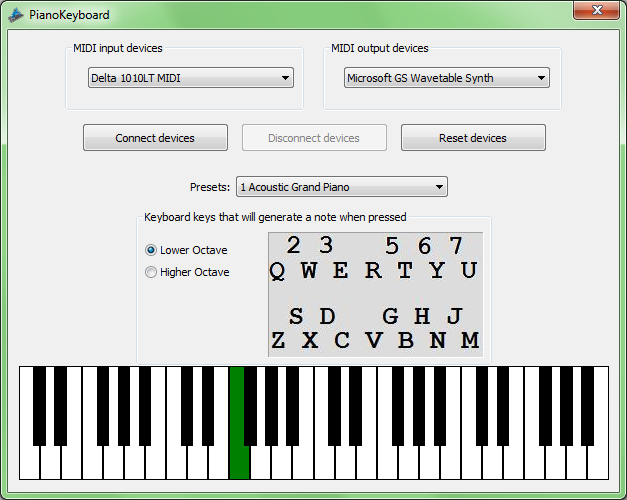

As a further feature, Active MIDI DJ Console allows creating a graphical virtual piano keyboard which may be used to display notes played on a connected physical MIDI piano keyboard and generating MIDI notes to send to an output MIDI device or synthesizer installed inside the system.
The component is fully UNICODE compliant so can support languages using the double-byte convention.
Some tutorial is available to help you beginning your developments with this powerful control.
Supported target systems:
- Windows XP (x86 and x64 versions)
- Windows Server 2003 (x86 and x64 versions)
- Windows Vista (x86 and x64 versions)
- Windows Server 2008 (x86 and x64 versions)
- Windows 7 (x86 and x64 versions)
- Windows 8 (x86 and x64 versions)
- Windows 10 (x86 and x64 versions)
